Thermographic |
Detector type | VOx |
Detector resolution | 384 × 288 |
Pixel size | 17μm |
Wavelength range | 8μm to 14μm |
NETD | ≤ 40mK@30°C |
Thermographic camera lenses | 50mm, 12.4°x9.9° |
Detail enhancement | Supported |
Noise reduction | 2D/ 3D noise reduction |
Image flip | Supported |
Temperature measurement |
Measurement range | Low temperature mode: -20°C to 150°C, high temperature mode: -20°C to 550°C |
Target setting | Multi-preset-point temperature measuring, up to 300 temperature measuring preset points; For each preset point: spot temperature measuring: 12 spots, area temperature measuring: 12 areas, linear temperature measuring: 12 lines; Up to 12 simultaneous temperature measurements at each preset point (spot + area + line), and the area shape can be circle, square and irregular polygon |
Measurement accuracy | ±2°C or ±2% (whichever is greater) |
Cold/ hot spot tracking | Supported |
Full-screen point temperature measuring | Supported |
Query and export of temperature measuring information | Supported |
Optical Module |
Sensor type | 1/1.8" Progressive Scan CMOS |
Maximum resolution | 2688 × 1520, 4 MP |
Visible light gain control | Auto/ manual |
Visible light noise reduction | 2D/ 3D noise reduction |
Backlight compensation | Supported |
Wide dynamic | Supported |
Strong-light photoinhibition | Supported |
Exposure compensation | Supported |
Visible light lens | 6mm-240mm (40X), horizontal: 61 ° (near focus) - 2.0 ° (far focus), 1m-1.5m (near focus to far focus) |
Fill light | Infrared fill light |
Image Effect |
Video compression standard | Switch between three standards H.265, H.264 and MJPEG |
Image coding formats | JPEG |
Code stream | Visible light: Mainstream (1, 920 × 1, 080, 1, 280 × 720); Substream: (1280 × 720、D1) ; Thermal image stream 1, 280 × 1, 024@25Hz, 640 × 512@25Hz |
PTZ HOUSING |
Movement Range | Pan: 360° Continuous Rotate; Tilt: From -20° to +90° (auto flip) |
Pan Speed | Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s |
Tilt Speed | Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s |
Proportional Zoom | Supported |
Presets | 255 |
Patrol scan | 4pcs(10 preset for each) |
Scan | R/L Scan, Horizontal scan, Watch position |
POWER UP ACT | Watch position/L/R Scan/Horizontal 360°scan/Patrol scan |
PARK ACT | Watch position/L/R Scan/Horizontal 360°scan/Patrol scan |
Wide angle speed | Focus length/speed auto match |
Protocol and storage |
Network protocol | IPv4, HTTP, FTP, SMTP, RTSP, RTP, TCP, UDP, DHCP, ONVIF, GB/ T28181 |
SDK/ API | Open SDK/ API for software integration |
Local storage | 32G TF card |
System function |
Language version | Chinese/ English |
Browser | Supported |
User management | It supports up to 20 users and multi-level user permission management; which is divided into three levels: root user, management group and user group |
Hardware interface |
Power interface | AC 24V/ 3A±15% |
Network interface | One 100M/ 1, 000M Ethernet port |
Alarm interface | OPTIONAL (1 input and 1 output) |
Other interfaces | OPTIONAL (1-channel RS485, audio 1 in 1 out) |
Environmental |
Working temperature | -40°C to + 60°C |
Working humidity | ≤ 95%, non-condensing |
Encapsulation | IP66 |
Physical |
Power consumption | ≤20W |

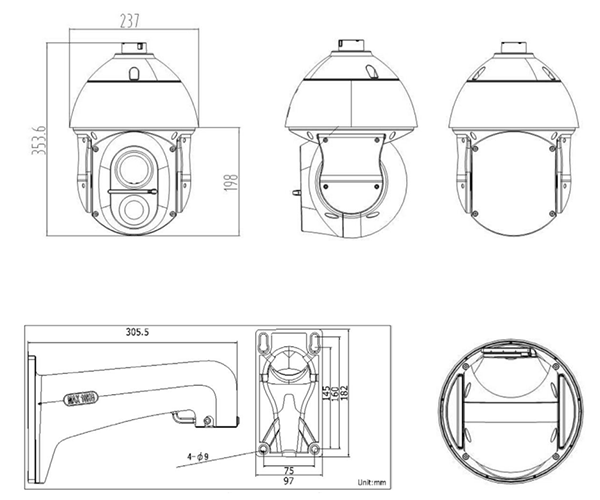

Size | ≤ Φ237mm x 355mm |
Net weight | 5.5KG |
Installation mode | Wall mounting/ ceiling mounting |
