Camera |
Sensor | 1/2.8" Progressive Scan CMOS |
Resolution | 2.0MP |
Low illumination | Color:0.001 Lux @(F1.7,AGC ON); B/W:0.0005Lux @(F1.7,AGC ON) |
S/N ratio | >52dB |
D/N mode | Auto ICR, auto, color, B/W |
|
Lens |
Zoom times | f =5.5-110mm, 20X optical,16X digital |
Aperture | Max aperture:F1.7~F3.7 |
Shutter | 1/25-1/100,000s;support slow shutter |
FOV | 45°-3°(wide-tele.) |
Min. Distance | 100mm-1500mm(wide-tele.) |
|
Encoding |
Video encoding | H.265 / H.264 |
H.265 | BaseLine Profile / Main Profile / High Profile |
H.264 | BaseLine Profile / Main Profile / High Profile |
Video encoding rate | 64Kbps~16Mbps |
Audio encoding standard | G.711A/G.711U/G.726/AAC/G.722.1/MP2L2/PCM |
|
Image |
Main stream | 50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720); 60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720); |
Second stream | 50Hz: 25fps(720×576,352×288); 60Hz: 30fps(720×576,352×288) |
Third stream | 50Hz: 25fps(704 × 576) ; 60Hz: 30fps(704 × 576) |
BLC | Support |
HLC | Support |
Exposure | Auto Exposure/Manual Exposure/Aperture Priority/Shutter Priority |
Focus | Auto focus/manual focus/semi-automatic focus |
Area focus | Support |
E-defog | Support |
Electronic anti-shake | Support |
D/N shift | Automatic, manual, image algorithm, timing, serial trigger |
3D DNR | Support |
Picture Overlay | Support |
ROI | 4 areas |
|
Internet Function |
Storage | Micro SD/SDHC /SDXC card(256G),NAS(NFS,SMB/CIFS |
Internet Protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE,SNMP |
Protocol | ONVIF( Profiles S, Profiles G)/SDK/third-party protocol |
|
Interface |
Internet interface | 36pin FFC , USB |
|
General |
Working Temp. | -30℃~60℃, humidity<95%(Non-Condensing) |
Power supply | DC12V±10% , 2A |
Consumption | 2.5W (4.5W MAX) |

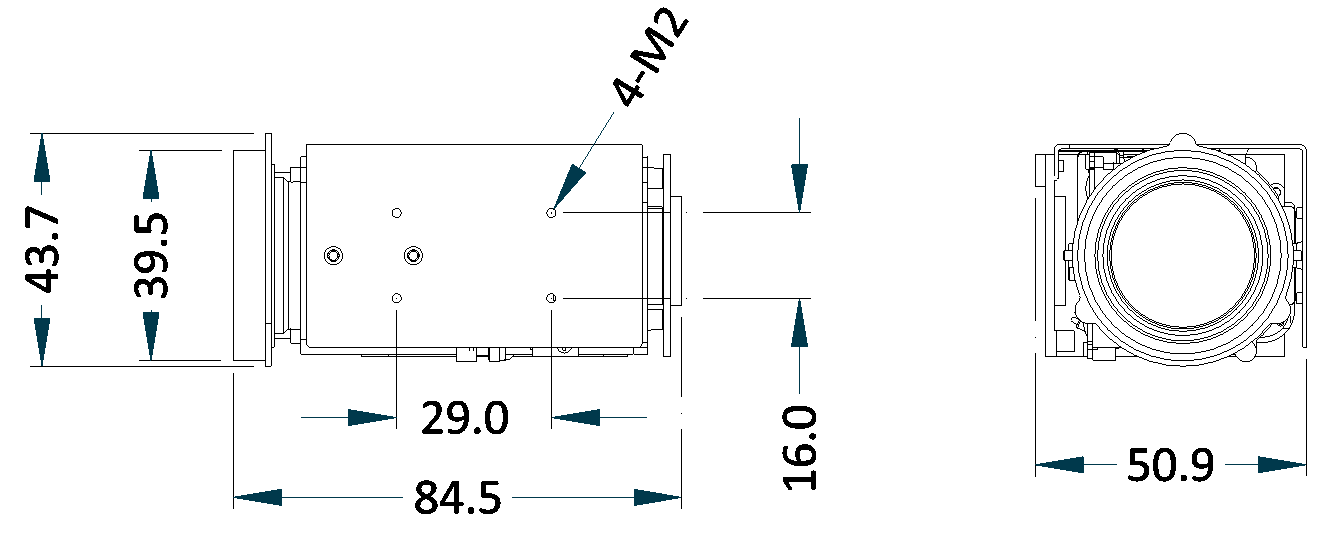

Size | 84.3*43.7*50.9mm |
Weight | 120g |
