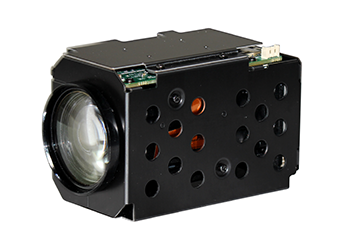

33X 2MP Network Zoom Camera
TSC-2133
33X 2MP Network Zoom Camera
Model：TSC-2133
Introduction：

▪︎ 1/2.8" Ultra Starlight CMOS Sensor
▪︎ SIGMASTAR PROGRAM,
▪︎ 2MP (1920 x 1080)@30fps video image,
▪︎ 0.001Lux/F1.5(Color),0.0005Lux/F1.5(B/W),0 Lux with IR
▪︎ Optical 33x, Digital 16x
▪︎ Support 255pcs presets,8 pcs patro scan
▪︎ Support the Max. to 256G for capture and video record
▪︎ Support 1ch audio input and 1ch audio output
▪︎ Built-in 1ch alarm input & output,support alarm linkage function
▪︎ Support ONVIF,GB/T28181 and the third-party protocol
  • Features
  • Specification

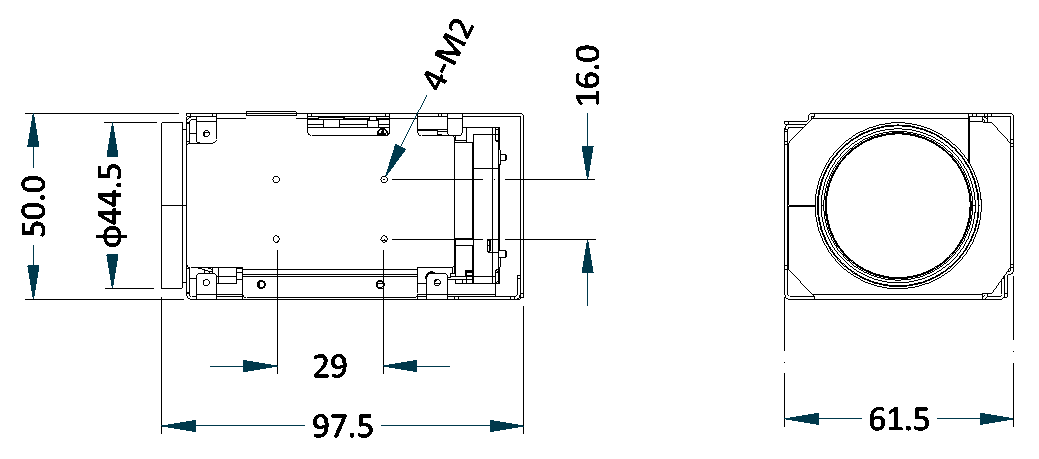

  • Dimensions

Resolution :up to 2MP（1920×1080）,Output Full HD :1920×1080@30fps Live Image.


Support H.265/H.264/MJPEG Video Compression Algorithm ,Multi-level Video Quality Configuration and Encoding Complexity Settings.


Starlight Low Illumination，0.001Lux/F1.5(color),0.0005Lux/F1.5(B/W) ,0 Lux with IR


33X Optical Zoom，16X Digital Zoom


Smart Detection: Line Crossing, Intrusion, Region Enter/Exit


Support 3-stream Technology, each stream can be independently configured with resolution and frame rate


ICR automatic switching, 24 hours day and night monitoring


Support Backlight Compensation, Automatic Electronic Shutter ,adapt to different monitoring environment


Support 3D Digital Noise Reduction, High light Suppression, Electronic Image Stabilization, 120dB Optical Wide Dynamic


Support 255 Preset,8 patrols.


Support Timed Capture and Event Capture


Support One-click watch and One-click cruise functions


Support 1 audio input and 1 audio output


Built-in 1 alarm input and 1 alarm output, support alarm linkage function


Support Bluetooth, WiFi, 4G function module expansion


Support Micro SD / SDHC / SDXC card storage up to 256G


ONVIF


Rich interfaces for convenient function expansion


Small size and low power consumption, easy to access PTZ



Camera

Sensor

1/2.8" Progressive Scan CMOS

Resolution

2.0MP

Low illumination

Color:0.001 Lux @(F1.5,AGC ON); B/W:0.0005Lux   @(F1.5,AGC ON)

S/N ratio

＞52dB

D/N mode

Auto ICR, auto, color, B/W


Lens

Zoom times

f =4.8-158mm, 33X optical，16X digital

Aperture

Max aperture：F1.5~F4.0

Shutter

1/25-1/100,000s；support slow shutter

FOV

58.9°-2.4°（wide-tele.）

Min. Distance

100mm-1500mm（wide-tele.）


Encoding

Video encoding

H.265 / H.264

H.265

BaseLine Profile / Main Profile / High Profile

H.264

BaseLine Profile / Main Profile / High Profile

Video encoding rate

64Kbps~16Mbps

Audio encoding standard

G.711A/G.711U/G.726/AAC/G.722.1/MP2L2/PCM



Main stream

50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720);
60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720)；

Second stream

50Hz: 25fps(720×576，352×288); 60Hz: 30fps(720×576，352×288)

Third stream

50Hz: 25fps(704   × 576)  ;   60Hz: 30fps(704   × 576)

BLC

Support

HLC

Support

Exposure

Auto Exposure/Manual Exposure/Aperture Priority/Shutter Priority

Focus

Auto focus/manual focus/semi-automatic focus

Area focus

Support

E-defog

Support

Electronic anti-shake

Support

D/N shift

Automatic, manual, image algorithm, timing,   serial trigger

3D DNR

Support

Picture Overlay

Support

ROI

4 areas


Internet Function

Storage

Micro SD/SDHC /SDXC card(256G),NAS(NFS,SMB/CIFS

Internet Protocol

TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE,SNMP

Protocol

ONVIF( Profiles S, Profiles G)/SDK/third-party protocol


Interface

Internet interface

36pin FFC , USB


General

Working   Temp.

-30℃~60℃, humidity<95%(Non-Condensing)

Power supply

DC12V±10%

Consumption

2.5W (4.5W MAX)

Size

97.5*61.5*50mm

Weight

258g
