TSC-5233</br>22X 5MP Network Zoom Camera-HANGZHOU TSVISION TECHNOLOGY CO.,LTD.

TSC-5233 22X 5MP Network Zoom Camera: Model：TSC-5233; Introduction：

▪︎ Intilligent Function, Smart Function
▪︎ 1/2.8" Ultra Starlight CMOS Sensor
▪︎ 5MP (2592 x 1944)@25fps video image,
▪︎ 0.003Lux/F1.5(Color),0.001Lux/F1.5(B/W),0 Lux with IR
▪︎ Optical 33x, Digital 16x
▪︎ Support 255pcs presets,8 pcs patro scan
▪︎ Support up to 256G for capture and video record
▪︎ Support 1ch audio input and 1ch audio output
▪︎ Built-in 1ch alarm input & output,support alarm linkage function
▪︎ Support ONVIF,GB/T28181 and the third-party protocol

Next Prev

Send Us Your Quotation

Features
Specification

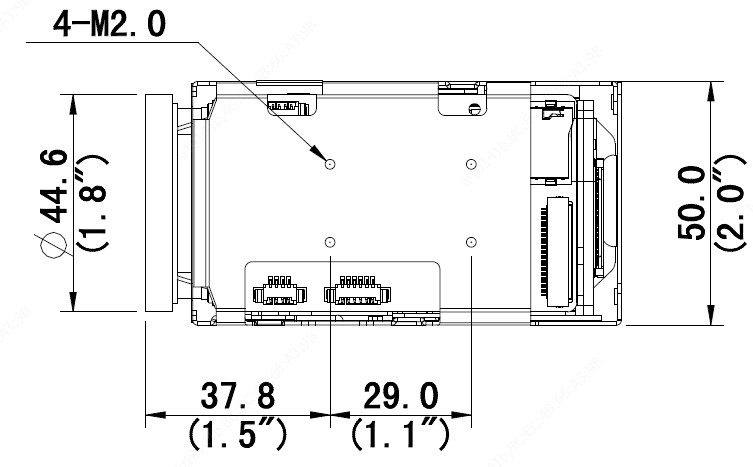

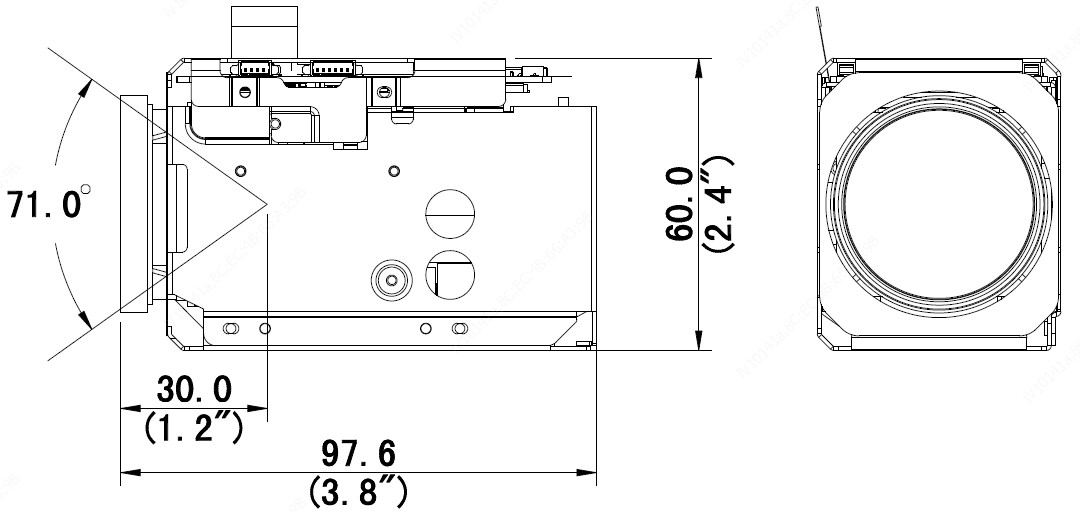

Dimensions

Smart function

Face detection, Depth Perimeter, Automatic tracking

Optical properties

1. Support starlight low illumination

2. 33x optical zoom

3. 120dB wide dynamic range

4. Adaptive strong light suppression

5. Self-Adaptive defog function

6. 3D noise reduction, live display effect is better

7. Automatic day and night conversion function (ICR)

Coding characteristics

1. Advanced H.265 coding algorithm, higher coding compression efficiency

2. AAC-LC wideband audio coding, high-definition sound quality; support noise suppression

3. Support 2592*1944@25fps, so that the screen presents smooth moving images

4. Three-stream package capability, meeting the requirements of real-time streaming and storage streaming with different bandwidths and frame rates

5. Customized OSD, providing custom effects of various content styles

6. Region Enhancement (ROI) function to improve the image quality of key areas in low-bandwidth network environments

7. Advanced H.265, SVC scalable video coding algorithm, higher compression efficiency, flexible application

Network characteristics

1. Network self-adaptation, providing effective monitoring in packet loss environment

2. Support ONVIF, GB/T28181, strong compatibility

Quality structure

1. Compact structure, small size, meet different application requirements

2. Support PELCO, VISCA protocol, which can meet the complex control requirements of PTZ and movement

3. Support personalized customization, you can customize the model, Logo, interface language

Camera
Sensor	1/2.8" Progressive Scan CMOS
Zoom	33X
Focal length	Electronic Focal , f =4.5-148.5mm
Aperture	Max aperture：F1.5~F4.0
Shutter	1-1/100,000s；Automatic/Manual
Defog	Self-adaptation Defog
WDR	120db
3D Position	Support
Low illumination	Color:0.003 Lux @(F1.5,AGC ON); B/W:0.001Lux @(F1.5,AGC ON)
S/N ratio	＞56dB
D/N mode	Auto ICR

Video
Video encoding	H.265、H.264、MJPEG
Encoding System	25921944@25、25921944@20、26881520@30、26881520@25 25601440@30、25601440@25、19201080@30、19201080@25
Video Stream	Main stream：25921944、26881520、25601440、19201080、1280720、720576（D1）、640360 Auxiliary stream：19201080、1280720、720576（D1）、640360 The third stream：720576（D1）、640360、704288（2CIF）、352*288（CIF）
Video bit rate	128Kbps~16Mbps
OSD	Time,Zoom,Preset,Serial port/Network port/Picture OSD,Postion info.,People counting , Volume, latitude and longitude
ROI	8pcs Areas
Privacy Masking	Black style, Max. to 4pcs for single area
Capture	Support timing capture, Cycle capture, Patrol capture

Audio
Audio encoding standard	G.711u、G.711A、AAC-LC
Audio encoding rate	G.711u、G.711A：8KHz；AAC-LC：8KHz、16KHz、48KHz

Storage
Edge Storage	Micro SD, up to 256GB

Intelligent
Face detection	Can simultaneously detect up to 40 faces as targets Support face detection area masking Supports three facial capture optimization modes: prioritizing effect, speed, and cycle.
Perimeter defense	Supports detection and capture of boundary crossing, area intrusion, entry into an area, and departure from an area. Supports classification detection and defense of motor vehicles, non-motor vehicles, and pedestrians.
Auto tracking	Supports classification tracking of motor vehicles, non-motor vehicles, and pedestrians in the scene.
Smart Function	Motion detection, Occlusion detection, Sound detection, Alarm input & output

Internet Function
Cache supplement	Support SD card disconnection cache supplement
Internet Protocol	L2TP、IPv4、IGMP、ICMP、ARP、TCP、UDP、DHCP、RTP、RTSP、RTMP、DNS、DDNS、 NTP、FTP、UPnP、HTTP、SNMP、SIP
Protocol	ONVIF Profile G、Profile T、Profile S、GB/T28181、IMOS、GA/T 1400、API

Interface
Internet interface	36pinFFC（Including network port、Power、Serial port UART_1、Serial port UART_2、Alarm In/Out、Audio In/Out）

General
Working Temp.	-30℃~60℃, humidity<95%(Non-Condensing)
Power supply	DC12V±10% , 2A
Consumption	2.5W (6W MAX)
Size	97.65060mm
Weight	260g
