TSC-8252</br>52X 4K Network Zoom Camera-HANGZHOU TSVISION TECHNOLOGY CO.,LTD.

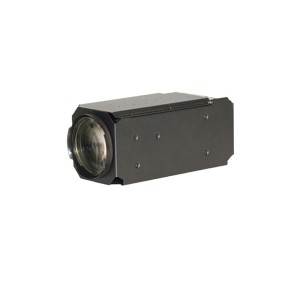

TSC-8252 52X 4K Network Zoom Camera: Model：TSC-8252; Introduction：

▪︎ 1/2.8" Ultra Starlight CMOS Sensor
▪︎ SIGMASTAR PROGRAM,
▪︎ 4K resolution (3840 x 2160)@30fps video image,
▪︎ 0.0005Lux/F1.4(Color),0.0001Lux/F1.4(B/W),0 Lux with IR
▪︎ Optical 52x, Digital 16x
▪︎ Support 255pcs presets,8 pcs patro scan
▪︎ Support the Max. to 256G for capture and video record
▪︎ Support 1ch audio input and 1ch audio output
▪︎ Built-in 1ch alarm input & output,support alarm linkage function
▪︎ Support ONVIF,GB/T28181 and the third-party protocol

Next Prev

Send Us Your Quotation

Features
Specification

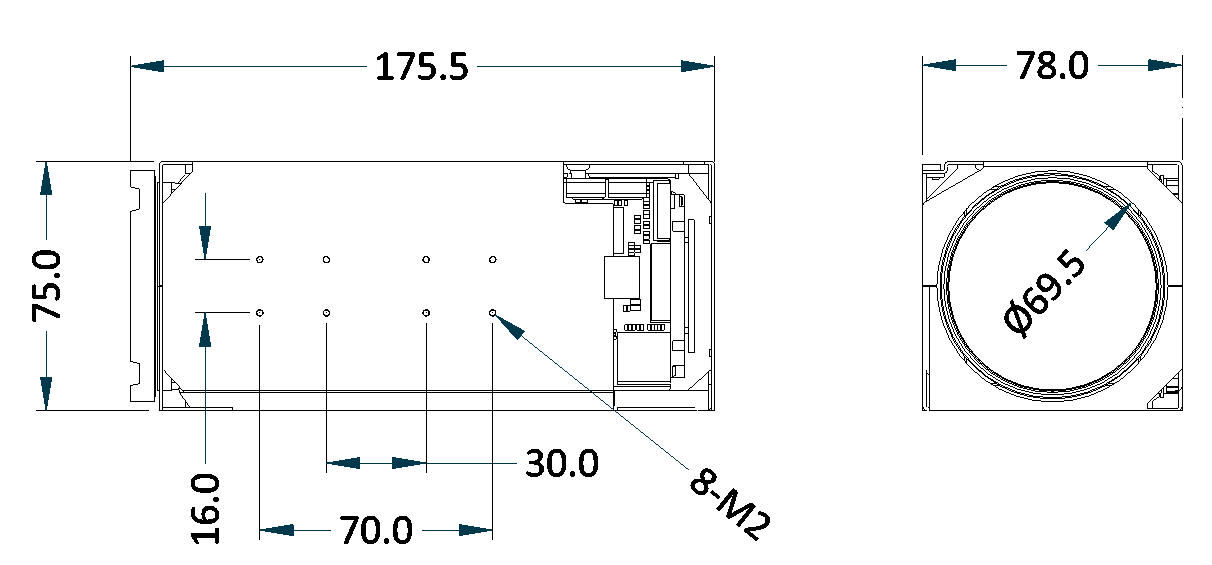

Dimensions

Max Resolution: 8MP（3840*2160）,Output Full HD : 3840*2160@30fps Live Image

Support H.265/H.264/MJPEG Video Compression Algorithm, Multi-level Video Quality Configuration and Encoding Complexity Settings

Starlight Low Illumination, 0.0005Lux/F1.4(Color),0.0001Lux/F1.4(B/W) ,0 Lux with IR

52x Optical Zoom, 16x Digital Zoom

Support Area Intrusion Detection, Cross-border Detection, Motion Detection, Privacy Shield, ect.

Support 3-stream Technology, Each Stream Can Be Independently Configured With Resolution And Frame Rate

ICR Automatic Switching, 24 Hours Day and Night Monitor

Support Backlight Compensation, Automatic Electronic Shutter, Adapt to Different Monitoring Environment

Support 3D Digital Noise Reduction, High light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics

Supports Optical Defog, Maximum Improves The Foggy Image

Support 255 Presets, 8 Patrols

Support Timed Capture and Event Capture

Support One-click Watch and One-click Cruise Functions

Support One Channel Audio Input and Output

Support Alarm Linkage Function with Built-in One Channel Alarm Input and Output

Support 256G Micro SD / SDHC / SDXC

Support ONVIF

Optional Interfaces for Convenient Function Expansio

Camera
Sensor	1/1.8" Progressive Scan CMOS
Resolution	4K
Low illumination	Color:0.001 Lux @(F1.4,AGC ON); B/W:0.0005Lux @(F1.4,AGC ON)
S/N ratio	＞52dB
D/N mode	Auto ICR, auto, color, B/W

Lens
Zoom times	f =6.1-317mm, 52X optical，16X digital
Aperture	Max aperture：F1.4~F4.7
Shutter	1/25-1/100,000s；support slow shutter
FOV	63.39°-1.74°（wide-tele.）
Min. Distance	100mm-2000mm（wide-tele.）

Encoding
Video encoding	H.265 / H.264
H.265	BaseLine Profile / Main Profile / High Profile
H.264	BaseLine Profile / Main Profile / High Profile
Video encoding rate	64Kbps~16Mbps
Audio encoding standard	G.711A/G.711U/G.726/AAC/PCM

Main stream	50Hz: 25fps (3840 × 2160,2560 × 1440，1920 × 1080，1280 × 960，1280 × 720); 60Hz: 30fps (3840 × 2160,2560 × 1440，1920 × 1080，1280 × 960，1280 × 720)；
Third stream	50Hz: 25fps(704 × 576) ; 60Hz: 30fps(704 × 576)
WDR	Support
BLC	Support
HLC	Support
Exposure	Auto Exposure/Manual Exposure/Anti Drag/Low Priority/High Priority/Aperture Priority/Shutter Priority/Lock Mode
Focus	Auto focus/manual focus/semi-automatic focus
Area focus	Support
Optic-defog	Support
Electronic anti-shake	Support
D/N shift	Automatic, manual, image algorithm, timing, serial trigger
3D DNR	Support
Picture Overlay	Support
ROI	4 areas

Internet Function
Storage	Micro SD/SDHC /SDXC card(256G),NAS(NFS,SMB/CIFS
Internet Protocol	TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE,SNMP，IPv6
Protocol	ONVIF/SDK/third-party protocol

Interface
Internet interface	36pin FFC,USB

General
Working Temp.	-30℃~60℃, humidity<95%(Non-Condensing)
Power supply	DC12V±10% , 2A
Consumption	2.5W (5.5W MAX)
Size	175.57578mm
Weight	930g
