40X 4K Network Zoom Camera
TSC-8240
40X 4K Network Zoom Camera
Model：TSC-8240
Introduction：

▪︎ 1/2.8" Ultra Starlight CMOS Sensor
▪︎ SIGMASTAR PROGRAM,
▪︎ 4K resolution (3840 x 2160)@30fps video image,
▪︎ 0.0005Lux/F1.4(Color),0.0001Lux/F1.4(B/W),0 Lux with IR
▪︎ Optical 40x, Digital 16x
▪︎ Support 255pcs presets,8 pcs patro scan
▪︎ Support the Max. to 256G for capture and video record
▪︎ Support 1ch audio input and 1ch audio output
▪︎ Built-in 1ch alarm input & output,support alarm linkage function
▪︎ Support ONVIF,GB/T28181 and the third-party protocol
  • Features
  • Specification

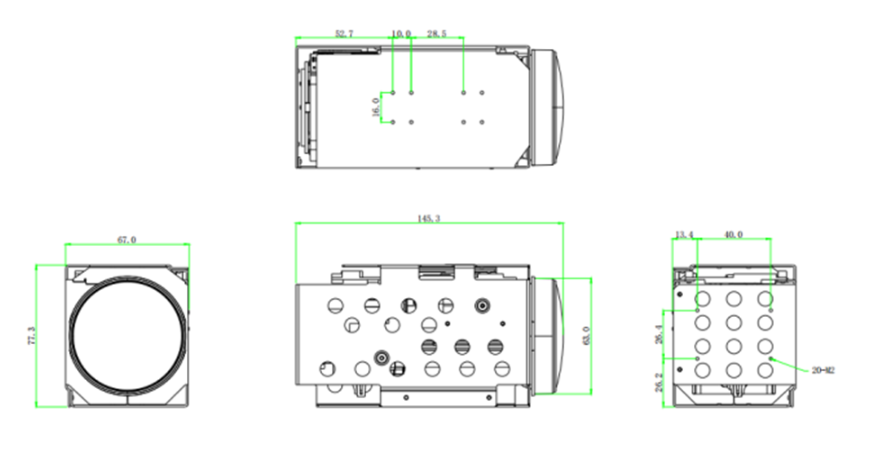

  • Dimensions

Max Resolution: 8MP (3840×2160), Max Output: Full HD 3840×2160@30fps Live Image

Contain 0.8T Intelligent Calculation, Supports Deep Algorithm Learning and Improves The Performance Of Intelligent Event Algorithm

Support H.265/H.264/MJPEG Video Compression Algorithm, Multi-level Video Quality Configuration and Encoding Complexity Settings

Starlight Low Illumination, 0.001Lux/F1.8(Color),0.0005Lux/F1.8(B/W) ,0 Lux with IR

40x Optical Zoom, 16x digital zoom

Support Optical Defog, Greatly Improve The Image Fog Effect

Support HDMI output

Support Basic Detection Functions

Support 3-stream Technology, Each Stream Can Be Independently Configured With Resolution And Frame Rate

ICR Automatic Switching, 24 Hours Day and Night Monitor

Support Backlight Compensation, Automatic Electronic Shutter, Adapt to Different Monitoring Environment

Support 3D Digital Noise Reduction, High light Suppression, Electronic Image Stabilization, 120dB Optical Width Dynamics

Support 255 Presets, 8 Patrols

Support Timed Capture and Event Capture

Support One-click Watch and One-click Cruise Functions

Support One Channel Audio Input and Output

Support Alarm Linkage Function With Built-in One Channel Alarm Input And Output

Support 256G Micro SD / SDHC / SDXC

Support ONVIF

Optional Interfaces for Convenient Function Expansion

Small Size and Low Power, Easy to Inset PT Unit, PTZ


Camera

Sensor

1/1.8" Progressive Scan CMOS

Resolution

4K

Low illumination

Color:0.001 Lux @(F1.4,AGC ON); B/W:0.0005Lux   @(F1.4,AGC ON)

S/N ratio

＞52dB

D/N mode

Auto ICR, auto, color, B/W


Lens

Zoom times

f =6.4-256mm, 40X optical，16X digital

Aperture

Max aperture：F1.35~F4.6

Shutter

1/25-1/100,000s；support slow shutter

FOV

59°-1.98°（wide-tele.）

Min. Distance

100mm-1500mm（wide-tele.）


Encoding

Video encoding

H.265 / H.264

H.265

BaseLine Profile / Main Profile / High Profile

H.264

BaseLine Profile / Main Profile / High Profile

Video encoding rate

64Kbps~16Mbps

Audio encoding standard

G.711A/G.711U/G.726/AAC/PCM



Main stream

50Hz: 25fps (3840 × 2160,2560 × 1440，1920 × 1080，1280 × 960，1280   × 720);
60Hz: 30fps (3840 × 2160,2560 × 1440，1920 × 1080，1280   × 960，1280 × 720)；

Third stream

50Hz: 25fps(704 × 576) ;  60Hz:   30fps(704 × 576)

WDR

Support

BLC

Support

HLC

Support

Exposure

Auto Exposure/Manual Exposure/Anti Drag/Low   Priority/High Priority/Aperture Priority/Shutter Priority/Lock Mode

Focus

Auto focus/manual focus/semi-automatic focus

Area focus

Support

Optic-defog

Support

Electronic anti-shake

Support

D/N shift

Automatic, manual, image algorithm, timing,   serial trigger

3D DNR

Support

Picture Overlay

Support

ROI

4 areas


Internet Function

Storage

Micro SD/SDHC /SDXC card(256G),NAS(NFS,SMB/CIFS

Internet Protocol

TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE,SNMP，IPv6

Protocol

ONVIF/SDK/third-party protocol


Interface

Internet interface

36pin FFC,USB


General

Working   Temp.

-30℃~60℃, humidity<95%(Non-Condensing)

Power supply

DC12V±10% , 2A

Consumption

2.5W (5.5W MAX)

Size

145.3*67*77.3mm

Weight

607g
