TS-502AJ-318CG/4G</br>4" 3MP 18X Mini 4G IR PTZ Camera-HANGZHOU TSVISION TECHNOLOGY CO.,LTD.

TS-502AJ-318CG/4G 4" 3MP 18X Mini 4G IR PTZ Camera: Model：TS-502AJ-318CG/4G; Introduction：

▪︎ Use MSC335 chip，2304×1296 image output
▪︎ 4G/wired network for network transmission
▪︎ Optical 18x
▪︎ Smart IR and warm LED, IR Distance > 120M
▪︎ Support scheduled tasks and power outage memory
▪︎ Support remote monitoring via computer and mobile app.
▪︎ All-aluminum alloy structure
▪︎ IP66

Next Prev

Send Us Your Quotation

Features
Specification

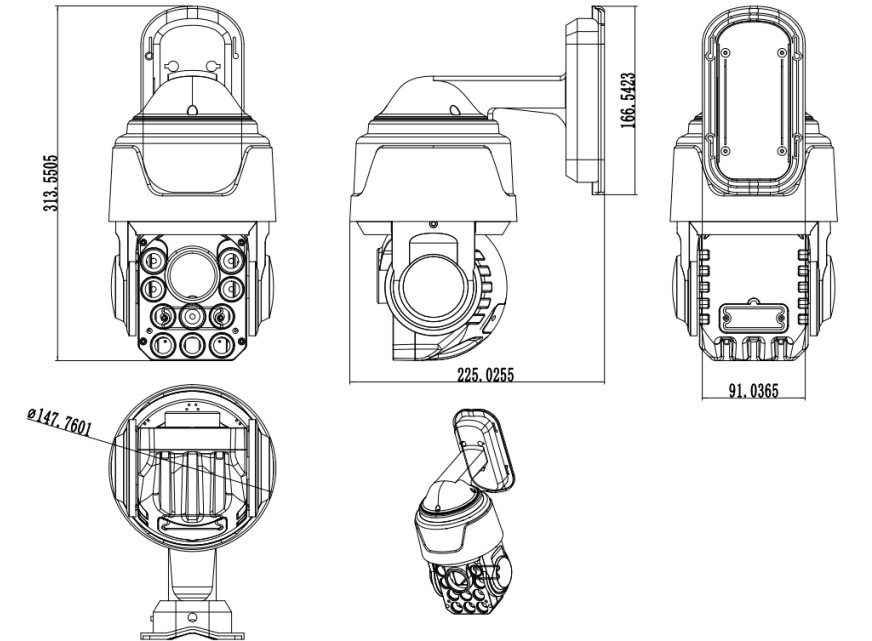

Dimensions

1. Use MSC335 chip，2304×1296 image output

2. Supports 4G/wired network for network transmission, compatible with 3G network

3. Supports static IP, as well as dynamic IP (DHCP), and supports P2P plug-and-play

4. Supports infrared and white light dual night vision.

5. Support Onvif protocol

6. Support 256G SD/SDHC/SDXC Card

7. Supports dual-stream technology, with each stream independently configurable for resolution and frame rate.

8. Supports dual light source alarm/intelligent human detection/sound alarm/voice intercom function.

9. Supports scheduled tasks and power outage memory function.

10. Supports remote monitoring via computer and mobile app.

Camera
Sensor	1/2.9" Progressive Scan CMOS, 3.0 megapixel
Min. Illumination	Color 0.001 Lux, B/W 0.005,0 Lux with IR, @ ( F1.4,AGC ON )
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto, 1 ~ 1/100000s
WDR	120dB
S/N	>56dB
Lens type	18X : 4.7 ~ 84.6mm
Zoom	Optical 18X
Iris	F1.6 ~ F3.5 （ 55.3° - 3.2° wide angle – telephoto ）
HLC	Support
BLC	Support

Networks
Protocol	HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP,GB/T28181
Management User	Support for multi-level user permission management

PTZ Housing
IR LED Control	4pcs near IR LED + 2pcs far IR LED
IR Range	More than 80m IR range
Warm LED Control	4pcs near LED + 4pcs far LED
Warm LED Range	More than 60m IR range
IR On/Off Control	Auto/Manual
Horizontal scan	0°～360°continuously
Vertical range	-10°～90°（auto flip）
Horizontal speed	0.1°～80°/s
Vertical speed	0.1°～60°/s
Max speed	80°/S
Preset	255
Patrol scan	4pcs（16 preset for each）
R/L Scan	1
Horizontal scan	1
POWER UP ACT	Watch position/L/R Scan/Horizontal 360°scan/Patrol
Watch position	1
Auto mode	Supports idle actions,power-on actions,and rotation speed can be automatically adjusted based on the lens magnification
Human-shaped surveillance	Supports human recognition linked with audio-visual alarms and tracking,and allows for freely selecting surveillance areas

General
Consumption	＜15W
work environment	temperature ：-40～60℃；humidity＜95%
Protection level	IP66 waterproof，6000V lightning protection
Weight	2.0KG ( Including the package )
